In modern architectural lighting design, facade lighting is a key element in shaping a building’s nighttime image. LED wall washer vs. wall grazer, as two of the most commonly used architectural facade lighting fixtures, often confuse designers and owners – they look similar, but their actual effects and application scenarios are quite different.
Many designers and purchasing personnel frequently ask, “What are the differences between LED wall washers and wall grazers?” This article will provide a comprehensive comparison from the perspectives of definition, beam angle, installation method, luminous efficacy, and application scenarios, helping you understand the fundamental differences between these two types of fixtures and guiding you in making the right choice based on your project needs.
Table of Contents

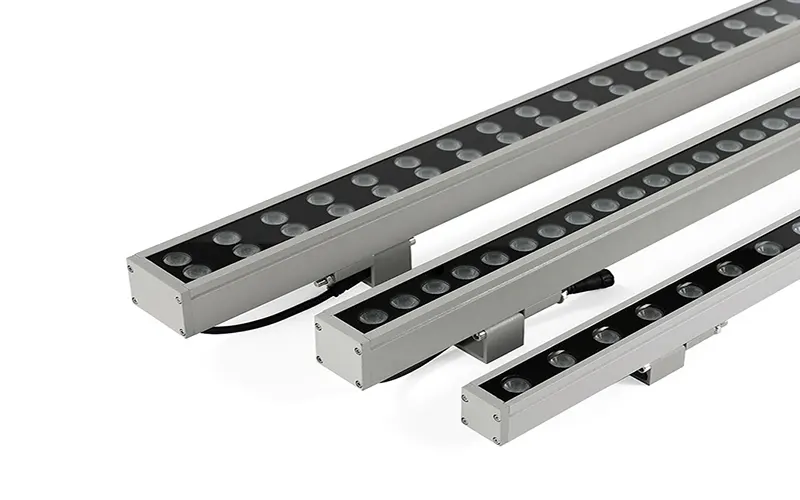

What are LED Wall Washers?
LED wall washers are linear lighting fixtures specifically designed for uniformly illuminating building facades. Through special optical design, they create a “washing” effect of light on the wall surface, hence the name “wall washer.” They have a wide beam angle, typically 30° to 120°, and are installed at a distance to achieve large-area illumination from top to bottom or bottom to top.
Main features of LED wall washers:
- Uniform light distribution, suitable for highlighting building contours or the entire facade.
- Commonly used in large-area floodlighting projects such as hotel exteriors, commercial buildings, plaza walls, and bridge sides.
- Offers advantages such as energy efficiency, long lifespan, and high waterproof rating (e.g., IP65).
Application advantages:
The design of LED wall washers aims to make the light “glide” along the wall surface, not emphasizing shadows and textures, but rather enhancing the overall visual impact of the building through a uniform light effect.

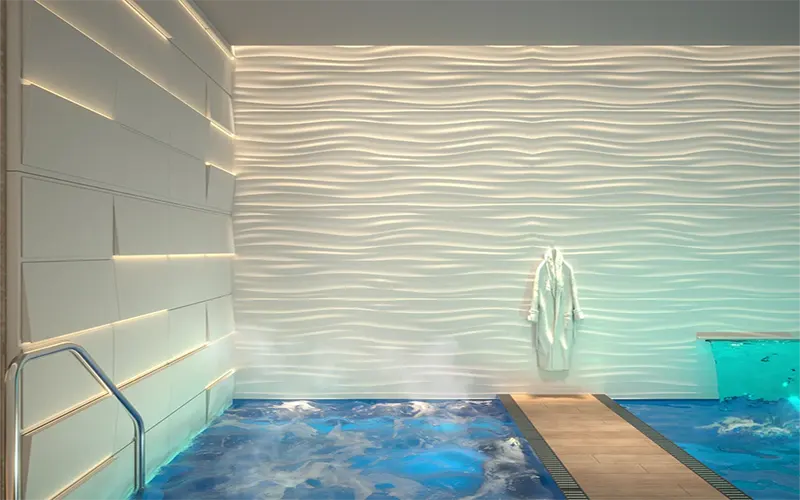

What is Wall Grazer?
Wall Grazer is a linear lighting method specifically designed to highlight the texture, material, and relief of wall surfaces. It has a very narrow beam angle, typically 10° to 30°, and is installed very close to the wall, usually less than 30cm away.
Main features of Wall Grazer:
- Extremely narrow light projection angle, creating strong light and shadow contrast.
- Designed for textured walls such as stone, cultural brick, concrete, and wood veneer.
- Suitable for corridor accent walls, hotel reception areas, art galleries, and distinctive commercial spaces.
Application advantages:
Wall Grazer emphasizes the “texture” of the wall, highlighting the texture with light, resulting in greater visual impact and design expression.
Differences between LED Wall Washer vs Wall Grazer
LED wall washers have a relatively wide beam angle design, mainly concentrated in the 15-60 degree range. The most common configurations are 30 and 45-degree beam angles, which allow for a large diffusion angle as the light travels. When the wall washer is installed 0.5-3 meters away from the wall, the beam forms a considerably large light spot upon reaching the wall, typically covering a wall area 1-4 meters high. This large-angle beam diffusion is the key technical basis for achieving a uniform wall washing effect.
In contrast, Wall Grazers have an extremely precise and strict beam angle design, usually controlled between 5-15 degrees, with high-end products even achieving ultra-narrow beams of less than 3 degrees. The purpose of this narrow beam angle design is to ensure that the light illuminates the wall in a near-parallel manner, minimizing light diffusion.
LED wall washers require a certain installation distance to achieve sufficient beam diffusion, typically between 0.5-3 meters. The choice of this distance needs to consider the beam angle, wall height, and desired lighting uniformity. Too close a distance will result in uneven illumination and noticeable hotspots; too far a distance will lead to insufficient light intensity, affecting the lighting effect.
Wall Grazers, on the other hand, require extremely precise installation distances, usually needing to be installed close to the wall, only 5-15 centimeters away. This close-range installation is necessary to achieve the grazing effect. If the installation distance is too far, the light will lose its grazing characteristics and fail to highlight the texture and details of the wall. At the same time, the installation angle also needs to be precisely controlled, usually forming an angle of 10-30 degrees with the wall, to ensure that the light illuminates the wall at the optimal angle.
Light Effect and Visual Effect Comparison
Visual presentation is one of the core considerations when choosing between LED wall washers and wall grazers.
Visual effects of LED wall washers:
- Creates a smooth and even light surface without noticeable shadows.
- Suitable for highlighting architectural volume and structural lines.
- Provides a stable, grand, and bright visual experience.
Visual effects of wall grazers:
- Highlights surface details of materials, such as stone textures, brick joints, and uneven structures.
- Strong light and shadow contrast creates a dramatic and artistic atmosphere.
- Provides greater spatial depth and layering, often used in areas of visual focus.
Note:
If the wall surface is a smooth material (such as glass or latex paint), using a Wall Grazer may expose imperfections and is not recommended; conversely, if the wall has a rich texture, a Wall Grazer can achieve a more outstanding effect.
Usage Scenarios and Recommended Applications
The two options have different usage scenarios, and the choice should be made based on the spatial design goals, wall materials, and desired effects of the user:
| Scene Category | Recommended lighting fixtures | Reason |
| Building façade | LED wall washer light | Large-area lighting emphasizes the architectural contours. |
| Main entrance of the commercial complex | LED wall washer light | Create overall brightness and enhance the spatial atmosphere. |
| Interior decorative wall (with texture) | Wall Grazer | Featuring prominent use of stone, brick patterns, and wood finishes. |
| Art gallery/museum walls | Wall Grazer | Creating a visual focal point enhances the impact of the exhibits. |
| Square walls/bridges | LED wall washer light | Expanding lighting coverage, balancing safety and aesthetics. |
| Hotel reception desk background wall | Wall Grazer | Enhance the sense of spatial depth and elevate the sophistication of the design. |
Conclusion
Although both LED wall washers and wall grazers are linear lighting products, they differ fundamentally in their uses, light characteristics, and applicable scenarios. Simply put:
If you want to illuminate an entire wall to create a bright and spacious atmosphere, choose LED wall washers.
If you want to emphasize materials and textures and create artistic light and shadow effects, choose wall grazers.
By understanding their core differences and considering the actual installation conditions and design requirements, you can more accurately select the appropriate product to enhance spatial expression and lighting quality.
Shop for high-quality wall washers and wall grazers now!
In our lighting product range, you can find LED wall washers and wall grazers in various specifications, suitable for a wide range of applications, from commercial building facades to interior decoration.
Visit our website to view our products now! Consult our lighting consultants for free lighting design advice!
FAQs
Which type of lighting is best suited to highlight the texture of stone or brick walls?
Wall grazers are ideal for this application. Their narrow-angle beam projects light along the wall surface, clearly revealing the texture and variations in the wall material.
Are LED wall washer lights suitable for indoor use?
Yes. Although most LED wall washer lights are used for outdoor lighting, there are also models specifically designed for indoor use, suitable for illuminating large wall surfaces in commercial spaces, exhibition halls, corridors, etc.
Which type of lighting fixture is more energy-efficient?
From the perspective of the light source itself, both LED wall washers and wall grazers utilize LED technology, offering high energy efficiency and long lifespan. There is little difference in energy efficiency between them; the key factors are the power consumption and how well they suit the intended application.
Can wall grazers and wall washers be used together?
Yes. Many high-end lighting design projects utilize both together.
